Electromagnetic Vibration Table for Vibration Test
Our Electromagnetic Vibration Table for Vibration Testing incorporates advanced technologies including double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings with linear guidance, and trunnion isolation. This system performs sinusoidal vibration tests across X, Y, and Z axes, along with broadband random vibration tests. It also handles classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests. Ideal for defense, aerospace, electronics, appliances, and industrial applications.
Technical Specifications
| Model |
ES-6 |
ES-6a |
ES-10 |
ES-20 |
| Rated Sine Force (N) |
6000 |
6000 |
10000 |
20000 |
| Frequency Range (Hz) |
3-3500 |
3-3500 |
3-3000 |
3-3000 |
| Rated Acceleration (m/s²) |
1000 |
1000 |
1000 |
1000 |
| Rated Speed (m/s) |
1.6 |
1.6 |
1.8 |
1.8 |
| Rated displacement (p-p)mm |
25 |
51 |
51 |
51 |
| Max. Loading (Kg) |
180 |
250 |
270 |
300 |
| Moving coil (Kg) |
6.5 |
12 |
14 |
30 |
| Dimension of Moving coil (mm) |
Φ230 |
Φ230 |
Φ240 |
Φ320 |
| Vibration Direction |
Vertical, horizontal, vertical+horizontal vibration |
Vertical Expander Features
Our VT vertical extended-bench features precision-calculated clamps and superior construction for optimal performance. The design incorporates high-quality materials and workmanship to ensure reliability and accuracy in testing applications.
Horizontal Expander Features
- Small loading bench design enables higher acceleration and working frequency
- Improves overall loading capacity and machine performance
- Integrated horizontal bench and vibration bench for easy installation and adjustment
- Static pressure V-shape track with slope-resistant and bias-loading resistant capabilities
- Built-in oil pump with efficient structure for simple operation

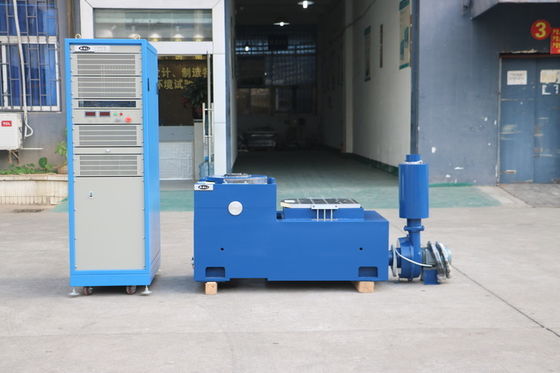

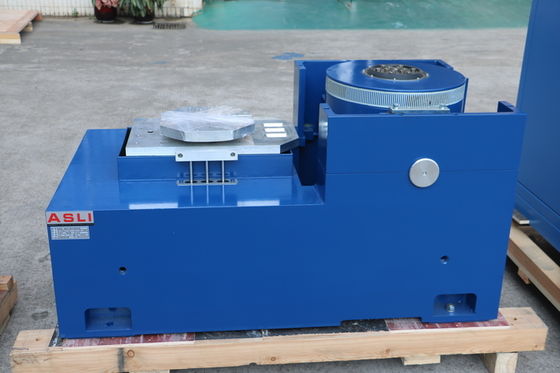

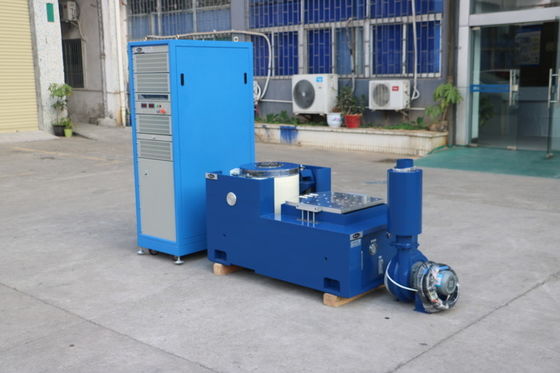

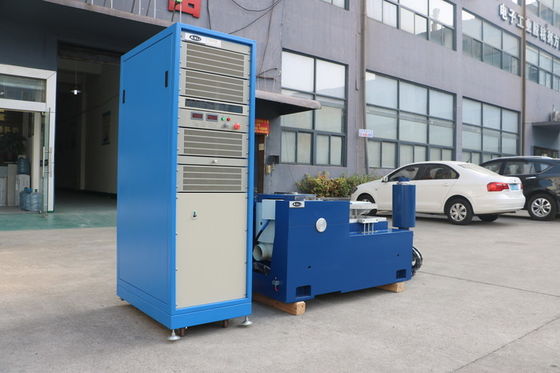

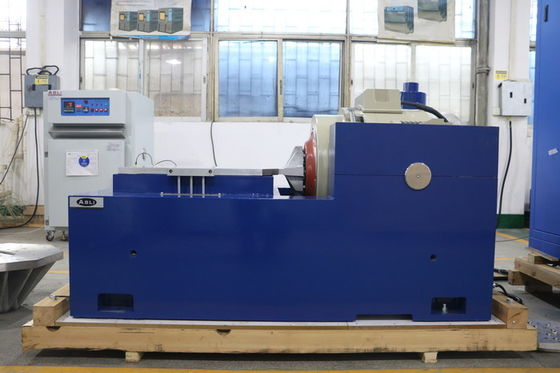

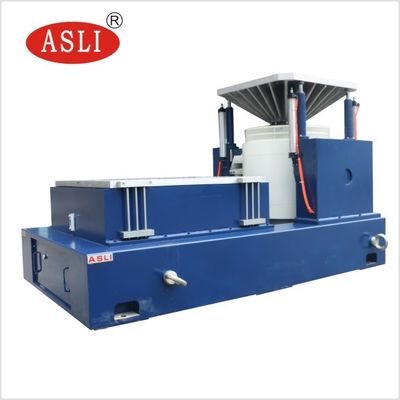

Product Gallery
Packaging & Delivery
We provide professional, environmentally friendly packaging with 10mm protective foam between the machine and export-grade plywood case to ensure safe transportation.
Frequently Asked Questions
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DAP, DDU, DDP
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
For more information about our Electromagnetic Vibration Table for Vibration Testing, please contact our technical team.
