Aperçu /Produits/Machine d'essai de vibration/High Frequency 10000N Sine Force Vibration Test Bench for Automotive Industry with 1 Year Warranty

High Frequency 10000N Sine Force Vibration Test Bench for Automotive Industry with 1 Year Warranty

1
MOQ
High Frequency 10000N Sine Force Vibration Test Bench for Automotive Industry with 1 Year Warranty
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
force sinusoïdale: 10000N
Vague de vibration: Sinus, aléatoire, choc
Directions de vibration: 3 axes
Capteur d'accélération: 1 pc
Canal d'entrée: 1 canal
force aléatoire évaluée: 10000N
Gamme de fréquences: 3-3000Hz
Accélération nominale: 1000m/s2
Vitesse nominale: 1,8 m / s
Délocalisation nominale: 51 mm
Chargement maximum: 270 kg
Poids de la bobine mobile: 14 kg
Dimension de bobine mobile: Φ240 mm
Squelette de cercle dynamique: fréquence de résonance axiale à étage élevé
Circuit magnétique: Circuit à deux aimants
Mettre en évidence:

10000N Vibration Test Bench

,

1 Year Warranty Vibration Testing Machine

,

Sine Force Electrodynamic Shaker
Informations de base
Lieu d'origine: Guangdong, Chine
Nom de marque: ASLI
Certification: CE,Third party calibration qualification report
Numéro de modèle: ES-10
Conditions de paiement et expédition
Description de produit
High Frequency Vibration Test Bench
Technical Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450
Technical Parameters of Vertical Expander
High Frequency 10000N Sine Force Vibration Test Bench for Automotive Industry with 1 Year Warranty 0
Technical Parameters of Horizontal Expander
High Frequency 10000N Sine Force Vibration Test Bench for Automotive Industry with 1 Year Warranty 1
Vibration Test Machine Features
  • Well-designed dynamic circle skeleton with higher stage axial resonance frequency
  • Dual magnetic circuit design with low flux leakage, compact and rational structure
  • Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation for excellent eccentric load capacity
  • Trunnion isolation foundation designed for convenient mobile installation
  • Advanced moving system technology ensures high reliability of dynamic circle
  • Innovative duct design enhances cooling efficiency
  • High static stiffness and low dynamic stiffness of bearing balloon improves vibration table capacity and low-frequency performance

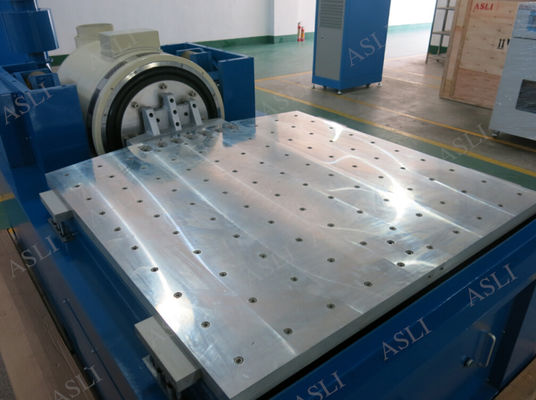

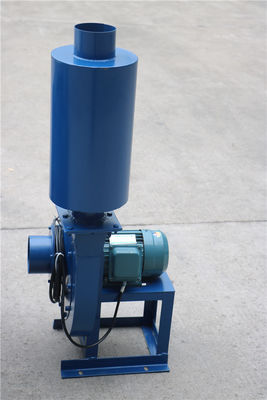

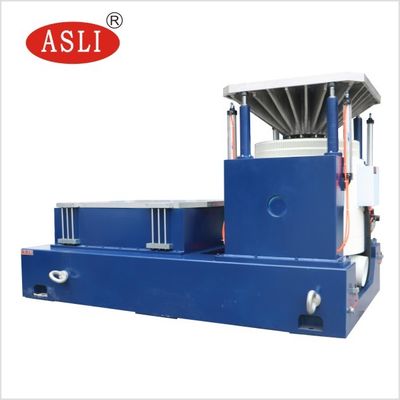

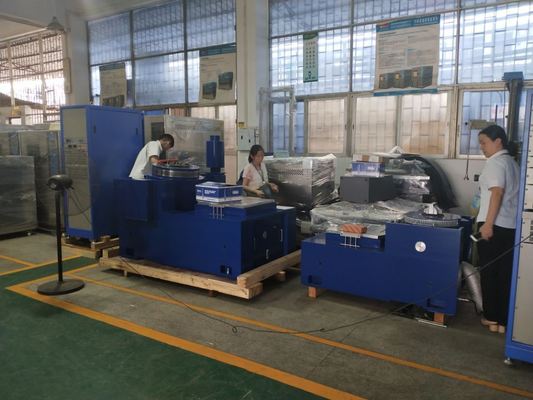

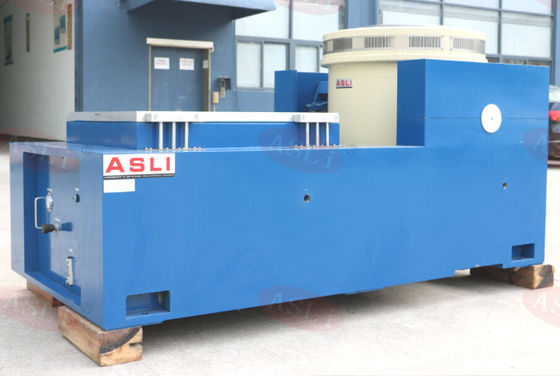

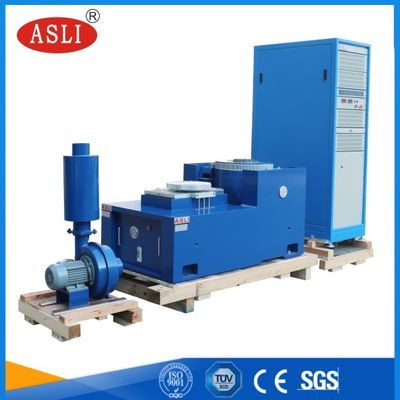

Product Images
High Frequency 10000N Sine Force Vibration Test Bench for Automotive Industry with 1 Year Warranty 2 High Frequency 10000N Sine Force Vibration Test Bench for Automotive Industry with 1 Year Warranty 3 High Frequency 10000N Sine Force Vibration Test Bench for Automotive Industry with 1 Year Warranty 4 High Frequency 10000N Sine Force Vibration Test Bench for Automotive Industry with 1 Year Warranty 5 High Frequency 10000N Sine Force Vibration Test Bench for Automotive Industry with 1 Year Warranty 6 High Frequency 10000N Sine Force Vibration Test Bench for Automotive Industry with 1 Year Warranty 7
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about our high frequency vibration test bench, please don't hesitate to send your inquiry.
